ORNITHOID

The ORNITHOID is combination of my project of ornithopter and
the project of ornithopter (ornithoid) of The University Of Toronto.

Rubberpowered model of ORNITHOID

span - 85cm

weight - 120g

chord - 12cm

amplitude - 10cm

The wing have upper feathers - its form and size determine the elasticity of the wing along the chord. The resistance of the wing upwards is less than downwards.

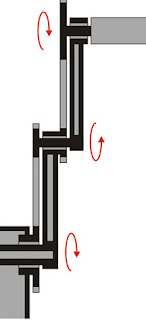

Variant of mechanics of rubberpowered model of ORNITHOID.

Electric - powered model of ORNITHOID.

Span - 2m.

Weight - 1,5kg.

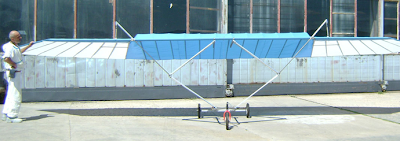

HUMAN POWERED ORNITHOID

Span - 9 m

Weight - 22 kg

Chord - 1.6 m

The wing is at midle position. It have two additional supports at rest.

ADAPTIVE ORNITHOID WING

ADAPTIVE ORNITHOID WING. THE X - DETAIL SUPPORT THE WING AT REST

HP ORNITHOID WITH ASSISTANT SPRING
